| Pressure angle |
20° |
| Material |
SS416 |
| Heat treatment |
Stress relief annealing |
| Tooth surface treatment |
- |
| Rack surface treatment |
Passivation |
| Tooth surface finish |
Milled |
| Precision grade |
ISO 7 |

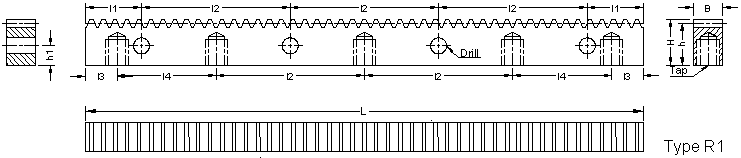

| Racks for continuous mounting |
|
| THC Rack # |
Pitch |
L |
B |
H |
h |
h1 |
I1 |
l2 |
l3 |
l4 |
Drill |
Tap |
No. of
Holes |
Type |
| SSRDP16-11EB |
16 |
11.185 |
0.365 |
0.725 |
0.6625 |
0.312 |
1.093 |
3 |
0.5925 |
2 |
17/64 |
#10-24×3 /8 |
4 |
R1 |
| SSRDP20-11EB |
20 |
11.147 |
0.365 |
0.725 |
0.6750 |
0.312 |
1.074 |
3 |
0.5735 |
2 |
17/64 |
#10-24×3 /8 |
4 |
R1 |
| SSRDP24-11EB |
24 |
11.120 |
0.230 |
0.475 |
0.4333 |
0.218 |
1.060 |
3 |
0.5600 |
2 |
#26 |
#6-32×1/4 |
4 |
R1 |
| SSRDP32-11EB |
32 |
11.087 |
0.230 |
0.475 |
0.4437 |
0.218 |
1.044 |
3 |
0.5435 |
2 |
#26 |
#6-32×1/4 |
4 |
R1 |
Note:
1.All dimensions are in inches.
